Structured Forms Intake

Checkbox also supports matter creation through structured forms intake via the Workflow product. Follow the steps below to set up and utilize this feature.

Prerequisites

  • The Workflow product needs to be enabled by Checkbox. Please contact your customer manager to activate this feature.

Steps to Create Matters via Structured Forms Intake

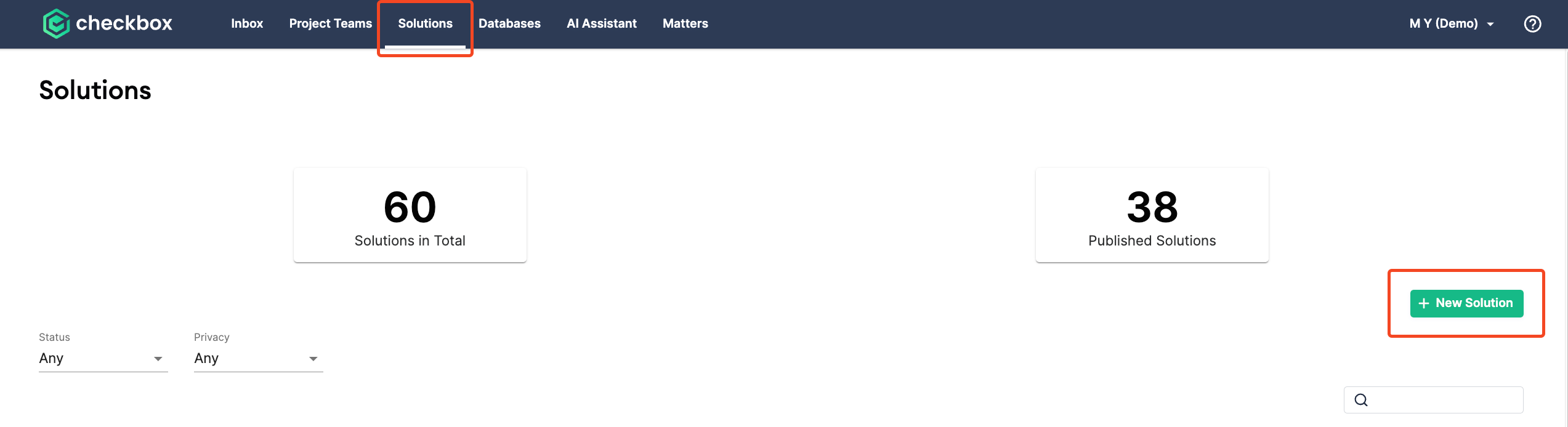

  • Create a Solution

    • Navigate to the Solutions tab.
    • Create a new solution tailored to your needs.

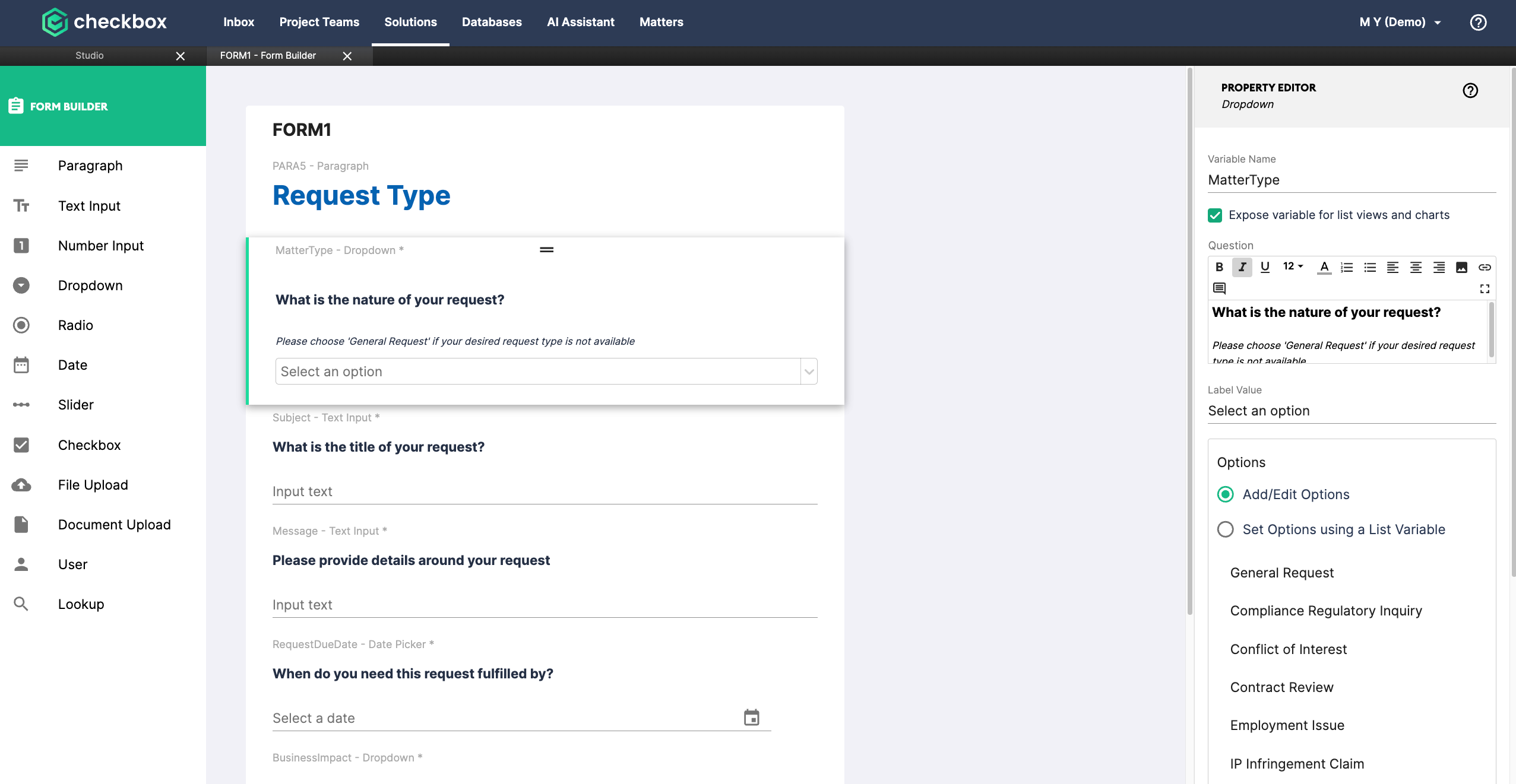

  • Design the intake Form

    • Within the solution, create a form to collect the necessary information.
    • Customize the form fields to match the specific data required for the matter.

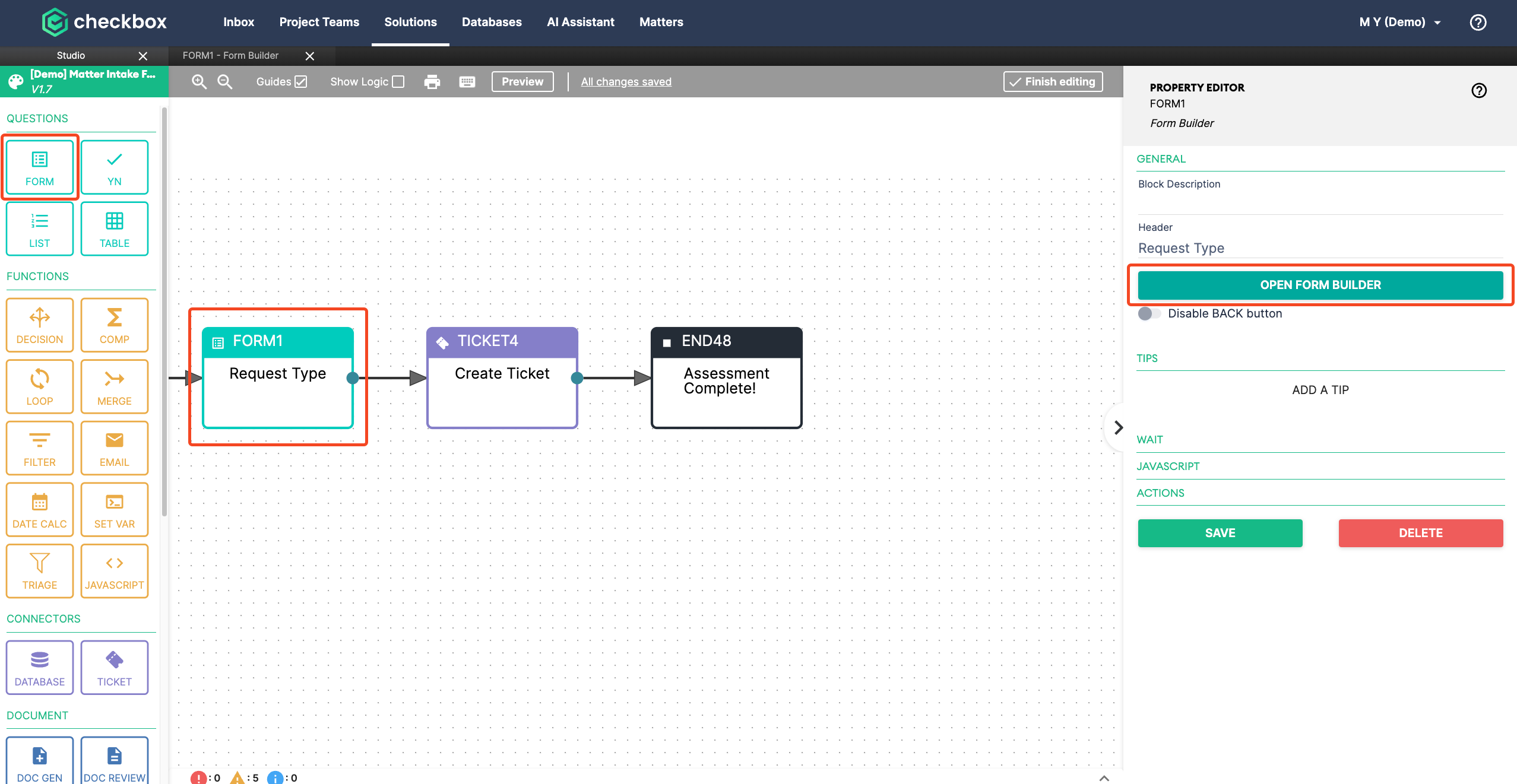

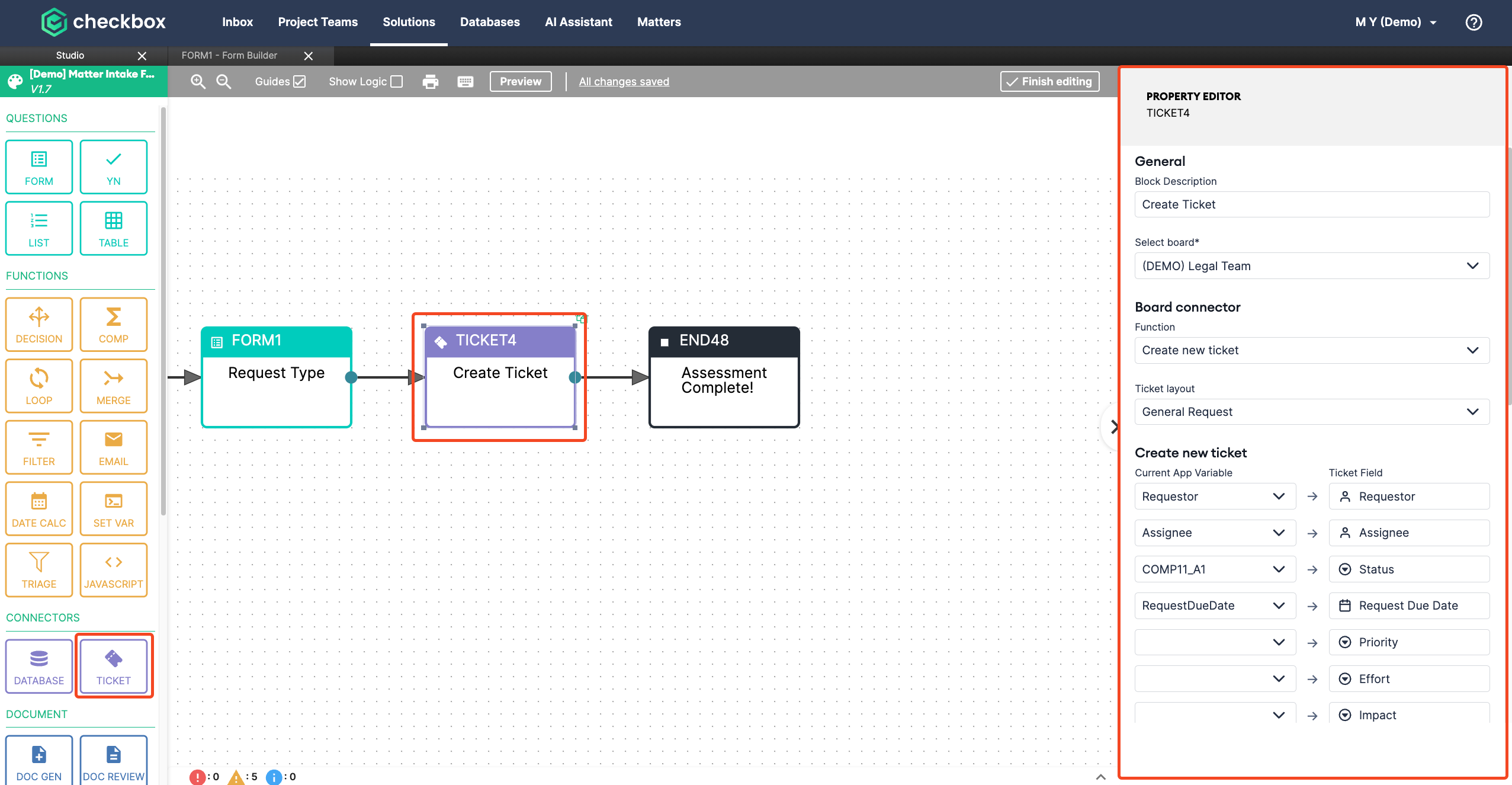

  • Connect via the Ticket Block

    • Use the ticketing block available in Studio to connect the form to your matter management system.
    • Configure the workflow to ensure the collected information is properly directed and processed.

By following these steps, you can efficiently manage matter intake through structured forms, enhancing the organization and consistency of information collected for each matter.



Field Mapping between Workflow and Matter Management

Variable Type in Workflow



Supported?



Field Type in Ticketing



Additional Notes / Logic



Text Input

✅

Short Text, Long Text



Number Input

✅

Number Field



Dropdown

✅

Single Select



Radio

✅

Single Select



Date

✅

DateTime



Slider

✅

Number Field



Checkbox

✅

Single Select

  • For multiple Checkboxes, MERGE block can be used

File Upload

✅

Field Field



Doc Upload

✅

File Field



User or User Picker

✅

User Field



LookUp

❌

-



YN

✅

Single Select



List Types

(LIST, MERGE, LOOP, FILTER blocks)

✅

Multiple Select



Table

(Text, Text Input, Number Input, Radio, Checkbox, Dropdown)

✅

Mappings reflect cell value



COMP



(Text field, Num field (starts with “=”))

✅

Mappings reflect cell value



Decision



(Text, Num)

✅

Decision (Text) → Short text, long text

Decision (Num) → Number field



Date Calc

✅

Date



Set Var



(Text, Number, DateTime, File, Doc)

✅

Mappings should reflect underlying cell value as above.



Doc Gen

✅

-

Files can be referenced in the "Attachments" section

Doc Review

✅

-

Files can be referenced in the "Attachments" section

Paragraph

❌





[[current_user_name]]

✅

Short Text,

Long Text,

USER



[[current_user_email]]

✅

Short Text,

Long Text,

USER



[[current_assessment_url]]

✅

Short Text,

Long Text



[[transcript_link]]

✅

Short Text,

Long Text



{{FILE#}}

✅

Short Text,

Long Text



[[assessment_name]]

✅

Short Text,

Long Text



[[assessment_uuid]]

✅

Short Text,

Long Text



[[project_team_name]]

✅

Short Text,

Long Text



[[app_name]]

✅

Short Text,

Long Text



[[initial_owner]]

✅

USER



[[reference]]

✅

Short Text,

Long Text
