Disclaimer
This article covers the Ironclad → Checkbox integration for Matter Management only. It does not apply to Checkbox Workflow automation or AI Agent products.
Overview
1 · How does the integration work?
When an Ironclad Workflow starts, Checkbox automatically creates a Matter that mirrors key contract data. Ironclad remains the source of truth; Checkbox stores a read-only copy for reporting and cross-team visibility.
| Sent from Ironclad | Where it appears in Checkbox |
|---|---|
| Contract type (e.g. NDA, MSA) | Ironclad Workflow name + Contract fields |
| Contract metadata (counterparty, value, jurisdiction) | Custom Matter fields |
| Workflow status (Create → Review → Sign → Archive → Completed / Canceled) | Ironclad Status field |
| Legal assignee / approver | Assignee field |
| Workflow owner | Requester field |
| Cycle-time metrics | Ironclad Contracting Cycle Time |
Note: Completing, signing, or canceling the contract is done in Ironclad. Checkbox only displays the latest data and links back to Ironclad for any action.
2 · Prerequisites
| Requirement | Why it’s needed |
|---|---|
| Ironclad user with Admin rights | Authorizes connection to Checkbox |
| Checkbox Admin Panel access | Enables connection and board selection |
| At least one board in Checkbox | Matters must live in a board |
3 · Connecting Ironclad to Checkbox
- Open Admin ➜ Integrations ➜ Ironclad in Checkbox. If you do not see Ironclad under integrations, it needs to be enabled for your account. Please message your customer success manager, or email support@checkbox.ai
- Click Connect Ironclad account; you’ll be redirected to Ironclad for OAuth login.
- Authorize the app with an Ironclad Admin user.
4 · Import Ironclad Workflows
Each Ironclad Workflow is connected as a Checkbox Matter Layout. The "Import" button does a point-in-time check to check for new workflows, remove old workflows, and update existing workflows.
Note: Please ensure Ironclad workflow names do not clash with existing Checkbox matter layout names. Checkbox will create a matter layout based on the Ironclad Workflow name. Checkbox matter layout names must be unique.
- In Admin ➜ Integrations ➜ Ironclad, click Import.
- Checkbox creates one Matter Layout per Ironclad workflow:
- Name – same as the workflow
- Board – the board where the matter will be created
- Adds default fields: Ironclad ID, Ironclad Status, Requester, Assignee, Contracting Cycle Time.
5 · Configuring each Ironclad Workflow in Checkbox
- Each connected Ironclad workflow creates a corresponding Checkbox Matter Layout.

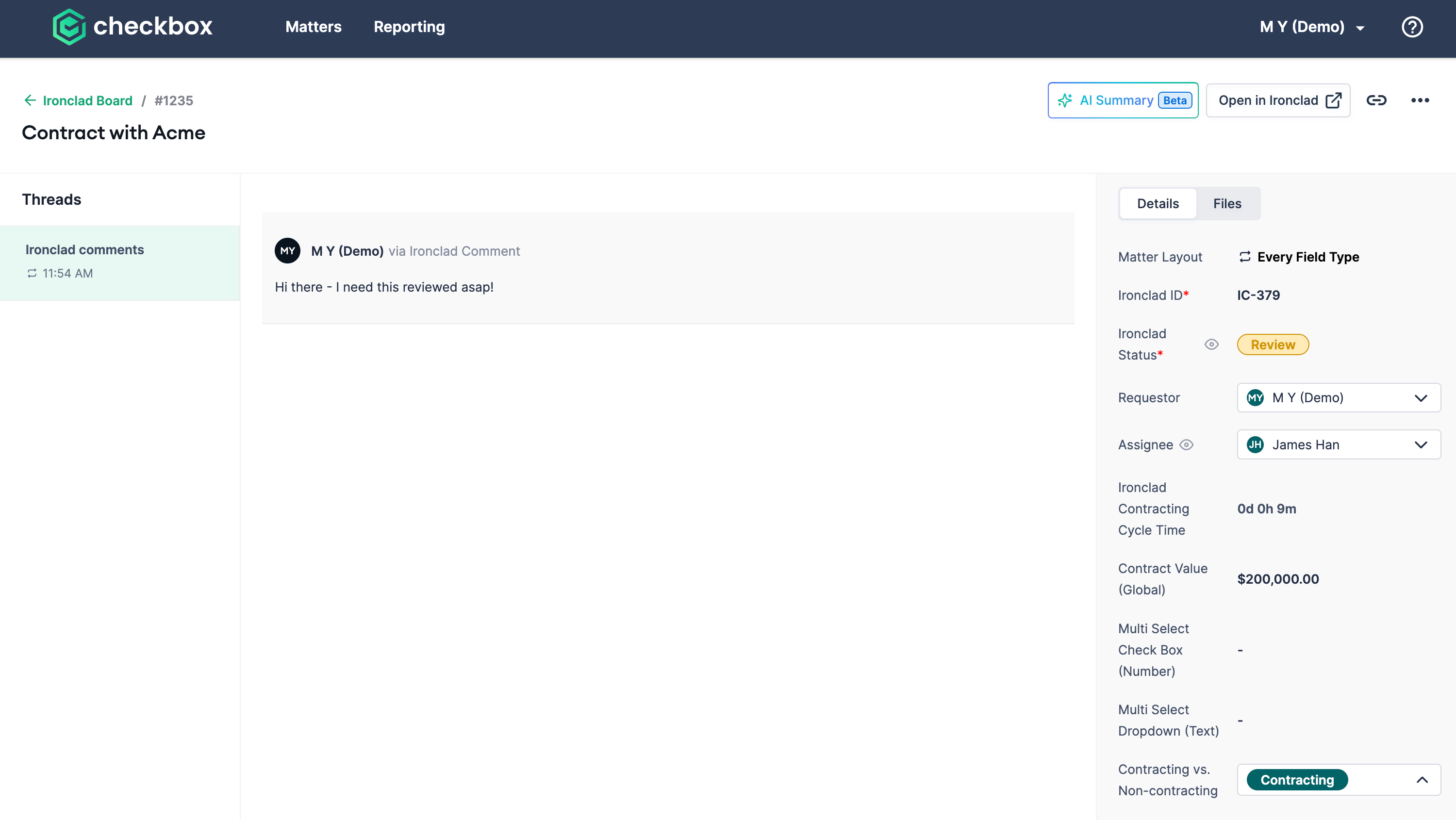

- Matter View: Ironclad matters can be displayed with a mix of Ironclad fields and Checkbox fields.
6 · Integration in action
- When an Ironclad workflow is created, a corresponding matter is created in Checkbox. It will appear in the board as indicated by the configuration in Admin > Integrations > Ironclad.
- To progress the Ironclad workflow, users must go into Ironclad. A button in the top right directs users from Checkbox to Ironclad.
- Any changes made in Ironclad update the Checkbox matter. This includes:
| Aspect | Details |
|---|---|
| Title | Mirrors Ironclad workflow title (auto-updates) |
| Requester | Workflow owner (creates user if allowed) |
| Assignee | First approved agent; blank if none |
| Primary Status | Always Ironclad Status (cannot be changed) |
| Comments | Single thread “Ironclad comments” pulls messages via in integration; edited/deleted comments respected |
| Files | Stored copy + deep link back to Ironclad (no preview/download) |
| Notifications | Disabled (Requester & Assignee won’t get Checkbox emails) |
| Restricted actions | No merge, delete, layout change, or extra threads |
7 · Board & Layout safeguards
- Layouts sourced from Ironclad can’t be manually archived or restored in Checkbox - do this in Ironclad instead.
- Archiving a Matter field in Checkbox only hides it; Ironclad values keep syncing in the background.
8 · System Fields & Reporting
| Field | Purpose |
|---|---|
| Created By | “Ironclad Integration” (fallback if user not found) |
| Source | Tagged Ironclad for easy filtering |
| Last Updated | Auto-refreshes when Ironclad sends new activity |
| Ironclad Contracting Cycle Time | Locked metric linked to Ironclad Status |
9 · Removing the integration
- Disconnect the Ironclad account in Admin ➜ Integrations.
- (Optional) Delete or archive the default board if it’s no longer needed.
Disconnecting stops new data but does not delete existing matters.
10 · FAQ
| Question | Answer |
|---|---|
| Can I edit or delete Ironclad data in Checkbox? | No. Data is read-only; edit in Ironclad. |
| Will changing the default board move existing layouts? | No, it only applies to future imports. |
| Why is the Import button greyed out? | A default board has not been selected. |
| Do updates flow back to Ironclad? | No, the sync is one-directional (Ironclad → Checkbox). |
Need help? Contact Checkbox Support with the Matter ID or Ironclad Workflow ID for faster troubleshooting.
